Grounding & Bonding Accessories

Corrosion resistance, conductivity and mechanical strength are essential considerations in clamp design to ensure an earthing system remains operative for many years.

All Furse earth rod clamps have high strength copper alloy bodies and screws e.g. aluminium bronze, phosphor bronze etc. - graded brass .

Product details

• For connection of flat tape conductor to an earth rod
• Tightening torque 15 Nm

Export to USA , Germany, Russia, Spain, UAE, japan, middle East

Domestic - Noida, Pune, Haryana, Manesar, Cheenai, Hydrabad

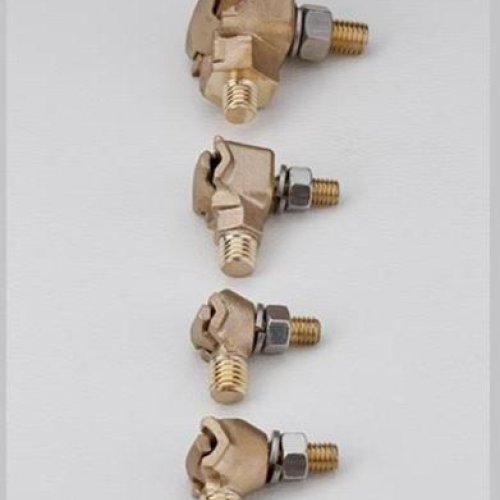

Brass Earth Clamp Description Overview

Brass earth clamps are essential electrical components designed to create a secure and reliable connection between an electrical conductor and the ground (earth). They are primarily used in grounding systems to ensure safety and stability in electrical installations.

Material and Properties

• Material: Brass, an alloy primarily composed of copper and zinc, known for its excellent electrical conductivity, corrosion resistance, and mechanical strength.
• Conductivity: High electrical conductivity ensures efficient grounding.
• Corrosion Resistance: Brass resists tarnish and oxidation, making it suitable for both indoor and outdoor applications.
• Durability: Robust mechanical properties provide long-lasting performance in various environmental conditions.

Design and Features

• Clamp Mechanism: Designed with a strong clamping mechanism that securely holds the conductor, ensuring a stable and low-resistance connection.
• Adjustability: Often adjustable to accommodate various conductor sizes and shapes, such as round or flat conductors.
• Ease of Installation: User-friendly design with simple installation procedures, often featuring screws or bolts for tightening.
• Versatility: Suitable for connecting to various grounding points, including pipes, rods, and structural metal parts.

Applications

• Electrical Grounding Systems: Used in residential, commercial, and industrial electrical systems to provide a path to the ground, ensuring safety by preventing electric shock and equipment damage.
• Lightning Protection Systems: Integral in grounding systems designed to protect buildings and structures from lightning strikes.
• Telecommunications: Used in grounding telecom equipment to prevent static discharge and ensure signal integrity.
• Renewable Energy Systems: Utilized in the grounding of solar panels and wind turbines to enhance safety and system performance.

Technical Specifications

• Conductor Size Range: Compatible with a wide range of conductor sizes, typically specified in product details.
• Current Rating: Designed to handle specific current loads, often indicated in amperes (A).
• Standards Compliance: Manufactured in accordance with relevant industry standards (e.g., IEC, BS) to ensure safety and reliability.

Advantages

• Reliable Grounding: Ensures a stable and continuous path to the earth, enhancing the safety of electrical installations.
• Long Service Life: Brass construction provides excellent durability and resistance to environmental factors.
• Low Maintenance: Minimal maintenance requirements due to the corrosion-resistant nature of brass.

Considerations

• Compatibility: Ensure the clamp is compatible with the conductor size and type used in your system.
• Installation: Proper installation is crucial for effective grounding. Follow manufacturer guidelines and local electrical codes.
• Environmental Conditions: While brass is corrosion-resistant, consider additional protective measures in highly corrosive environments.
• Exporting to USA, Japan, Spain, Germany

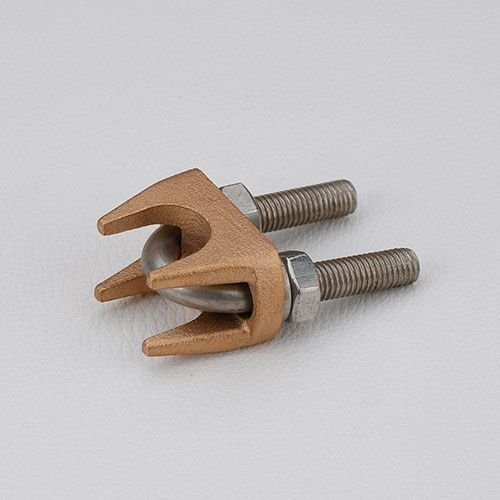

Bronze Rod to Cable Clamp Description Overview

Bronze rod to cable clamps are essential components used in grounding and bonding systems. They provide a secure and reliable connection between grounding rods and cables, ensuring the safety and integrity of electrical installations. These clamps are particularly valued for their durability and resistance to corrosion.

Material and Properties

• Material: Typically made of high-strength bronze, which is an alloy of copper, tin, and sometimes other elements like aluminum or nickel.
• Corrosion Resistance: Excellent resistance to corrosion, especially in harsh environments, such as marine or industrial settings.
• Electrical Conductivity: High electrical conductivity, ensuring efficient grounding and minimal resistance.
• Durability: Robust and able to withstand mechanical stress and environmental factors over a long service life.

Design and Features

• Clamp Mechanism: Designed to securely attach a cable to a grounding rod. This usually involves a bolt or screw mechanism that tightens to hold the cable firmly in place.
• Compatibility: Compatible with various sizes of rods and cables, often specified by the diameter range they can accommodate.
• Ease of Installation: Simple to install, often with standard tools. The design allows for a secure connection without the need for specialized equipment.
• Versatility: Suitable for use with different types of conductors, including both solid and stranded cables.

Applications

• Electrical Grounding Systems: Used in residential, commercial, and industrial electrical systems to ensure a safe path to the ground.
• Lightning Protection Systems: Integral in systems designed to protect structures from lightning strikes, grounding the energy safely.
• Telecommunications: Employed in grounding telecom equipment to protect against electrical surges and static discharge.
• Renewable Energy Systems: Used in the grounding of solar panels and wind turbines to enhance safety and performance.

Technical Specifications

• Rod Size Range: Designed to fit a specific range of rod diameters, usually specified in product details.
• Cable Size Range: Accommodates a variety of cable sizes, often indicated in gauge or cross-sectional area.
• Current Rating: Capable of handling specific current loads, usually indicated in amperes (A).
• Standards Compliance: Manufactured to comply with relevant industry standards (e.g., UL, IEC) to ensure reliability and safety.

Advantages

• Reliable Connection: Provides a secure and stable connection between the rod and cable, ensuring efficient grounding.
• Long Service Life: Made from durable bronze, offering a long-lasting solution resistant to environmental wear.
• Low Maintenance: Requires minimal maintenance due to the inherent corrosion-resistant properties of bronze.

Considerations

• Compatibility: Ensure the clamp is compatible with the rod and cable sizes used in your system.
• Installation: Follow proper installation guidelines to ensure a secure and effective connection.
• Environmental Conditions: Suitable for a wide range of environments, but additional protection might be needed in extremely corrosive conditions.
• Exporting To USA, Japan, Spain, Germany, Middle East, UAE, OMAN,  africa
